Chassis is all tubed up with the aluminium panels, some have been temporary fitted to enable access whilst the build is continuing, all panels have 3.5mm rivets apart form the floor which use 5mm rivets

Tunnel side panels cut to shape and bent, ready for fitting
Passengers end panel cut and riveted in place

Steering panel cut out of cardboard before copying to Aluminium



Side panels rivet & bonded with 3.5mm rivets every 10cm

Rear bulkhead fitted in place

A length of ali angle, with holes drilled at 2/3/4 inches used as a drill template for making out the ali panels

Floor panels riveted and bonded into place every 10cm

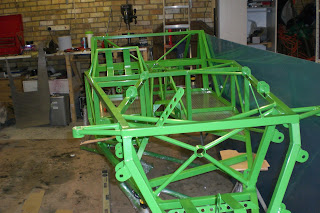

Chassis up on large axle stands waiting for the aliminum panels to be cut and bonded/riveted in place
